Cylinder Accessories
Top quality down to the last detail.
To complement the KONSTANDIN product portfolio,
we maintain an extensive stock of standard pneumatic components.
This ensures that your receive everything
you need for your pneumatic systems –
quickly, reliably, and without complication.

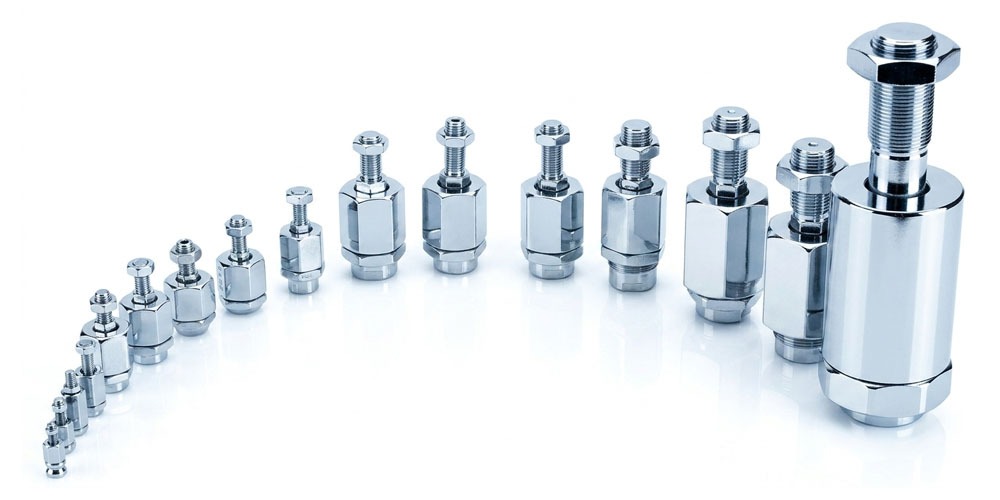

Compensating Coupling AK-M
| Application: | Compensating couplings / Flexo couplings provide angular and radial compensation for the piston rod |
| Sizes: | M4 – M48 x 2 |
| Material: | Zinc-plated steel or stainless steel 1.4305 |
| General: | – Suitable for all standard cylinders – Supplied with lock nut |
| Data sheet: | Download: PDF compensating couplings |
| 3D model: | Download: 3D models compensating couplings |

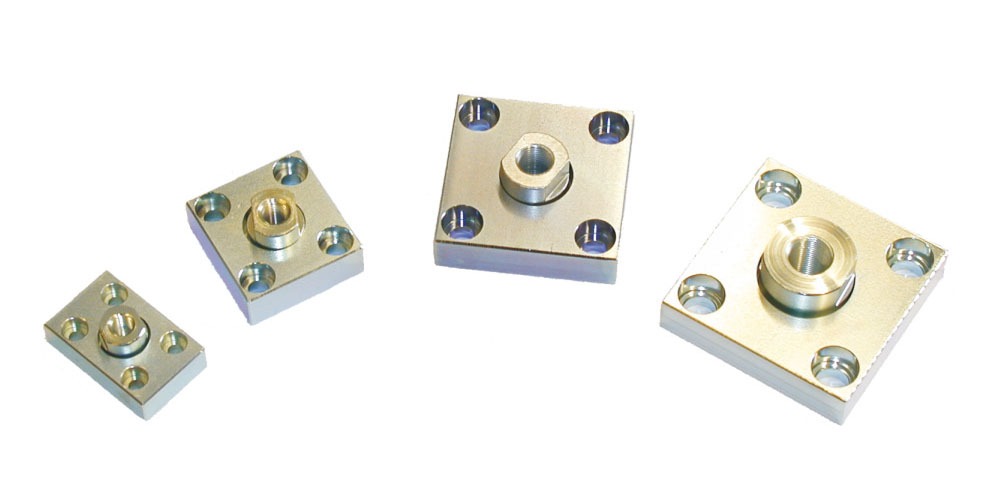

Coupling Pieces A-KSG
| Application: | Coupling pieces provide angular compensation for the piston rod |
| Sizes: | M10 x 1,25 – M42 x 2 |
| Material: | Zinc-plated steel or stainless steel 1.4305 |
| General: | Suitable for all standard cylinders |
| Data sheet: | Download: PDF coupling pieces |
| 3D model: | Download: 3D models coupling pieces |
Position-Measuring System
| Application: | A position-measuring system |
| Besonderheiten: | – Measuring length: 50 – 7600 mm – Thread connection: M18x1,5 (in the cylinder base) – Installation inside a hollow piston rod – Absolute measurement – High accuracy: linearity ≤ 0.01 % – LED indicator for sensor diagnostics – Analog output – Non-contact sensing, free of mechancial wear |
| Use case: | Ideal for applications such as low-friction cylinders |
